High Frequency, Low Noise, Light Weight, Easy To Operate
Movement:
Three Dimensional Vibration
Main Product:
Yes, Designed And Made By Ourselves
Type:
Electromagnetic Vibration Type
Advantage:
For Both Dry Screening And Wet Screening
Sieve Number:
1~8 Pcs
Digital Display:
YES
Time Adjustment:
0~99 Minutes
Material:
Stainless Steel Wire Drawing
Frequency:
3000 Times/min
Highlight:
electromagnetic sieve shaker
,
electromagnetic vibratory sieve shaker
,
lab sieve shaker

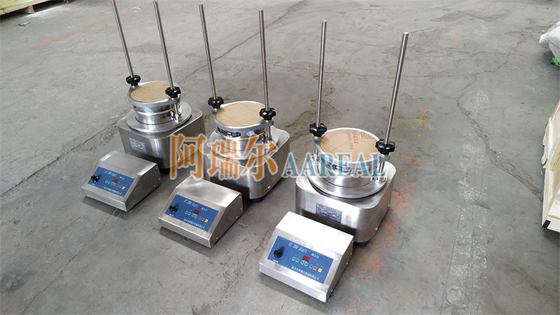

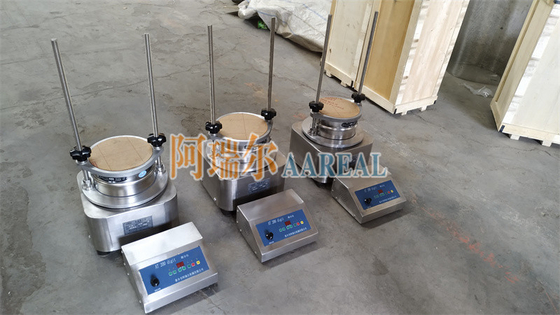

High Frequency 0~3mm Amplitude Electromagnetic Test Sieve Shaker For Particle Size Analysis
Overview of High Frequency 0~3mm Amplitude Electromagnetic Test Sieve Shaker For Particle Size Analysis:
High Frequency 0~3mm Amplitude Electromagnetic Test Sieve Shaker For Particle Size Analysis does three dimensional vibration. It is the best equipment for laboratory particle size inspection and field screening. It can be used for both dry and wet screening.
This device is widely used in pharmaceutical, metallurgy, food, super hard materials and other industries for particle analysis. It is a simple, efficient and precise screening tool that can reproduce the results of analysis very well.

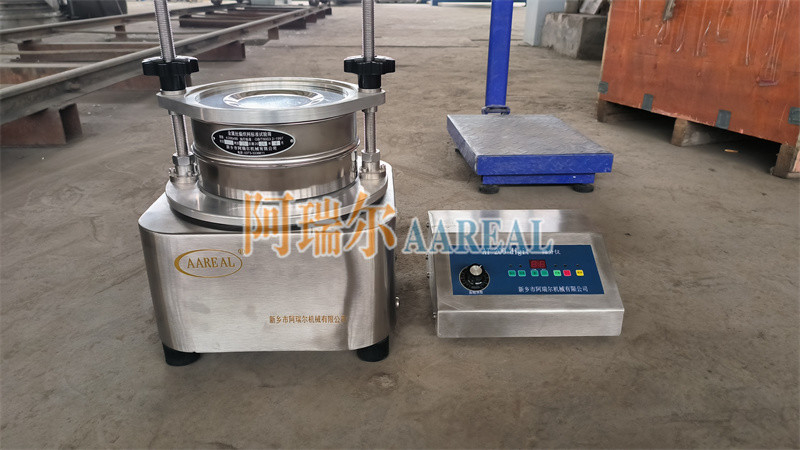

The AT-200 test sieve shaker is one of our main products. It is designed and made by our factory. The test effect and result are much better than the traditional electromagnetic vibration test sieve shaker. Besides, the body shell adopts stainless steel wire drawing technology, simple and beautiful.
Feeding Material of High Frequency 0~3mm Amplitude Electromagnetic Test Sieve Shaker For Particle Size Analysis:
1. Max Screening Capacity: 2.5 Kg
2. Max Sieve Tower Weight: 3.2 Kg
3. Max Loading Weight: 5.8 Kg (sample materials + analysis sieves)
4. Max Sieve Tower Height: 460 mm
Technical Parametersof High Frequency 0~3mm Amplitude Electromagnetic Test Sieve Shaker For Particle Size Analysis:
NO.
Name
Unit
Data
1
Sieve NO.
Layer
1～8
2
Screen Diameter
mm
Ø200 Ø100 Ø75
3
Particle Size
mm
0.028～3
4
Noise
dB
＜50
5
Amplitude
mm
0～3
6
Vibration Frequency
times/min
3000; 6000
7
Operating Mode
Kind
9
8
Power Supply
V;Hz
220; 50
9
Power
W
200
10
Weight
Kg
30
When ordering our AT-200 test sieve shaker, please let me know the voltage, hertz, sieve number, mesh size for each sieve. If you have special requirement for the motor brand, please also tell us.
Item Required
Requirement
Motor Brand
if special required
Voltage (Single Phase)
220V, 110V, or other?
Hertz
50HZ, or 60HZ ?
Sieve Number
Mesh Size for each sieve
Features of High Frequency 0~3mm Amplitude Electromagnetic Test Sieve Shaker For Particle Size Analysis:
1. AT-200 electromagnetic vibration test sieve shaker uses advanced powerful electromagnetic vibrator to produce optimized three-dimensional vibration, which makes the sieved samples not only vibrate vertically, but also roll over, so that it can make full use of the screen area to achieve the best result that can be reproduced.
2. With advanced numerical control circuit, the operating parameters such as amplitude, frequency and control time can be accurately adjusted.
3. Suitable for dry screening and wet screening.
4. Low noise, light weight, no need to fix and easy to operate.
It also can be used in Wet Screening by equipping with the inlet and outlet nozzle.
