Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | AF |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc. |
Delivery Time: | 20~35 work days after order confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 5 sets per month |
Largest Size: | Screen Width*length 2000mm*3600mm | Warranty: | 1 Year For The Machine (motor 10 Month) |
---|---|---|---|
Screen Decks: | 1~6 Screen Decks | Advantages: | Large Capacity, High Screening Accuracy, Multi-layer Sieving |
Screen Type: | Adopt Hook Screens, Durable | Mesh De-blinding: | Bouncing Rubber Balls |
Application: | Activated Carbon, Silica Sand, Frac Sand, Salt, Sugar, Fertilizer Etc. | Power: | 3KW~7.5KW |
Highlight: | calcite gyratory sifter,gyratory sifter for calcite,calcite screening machine |

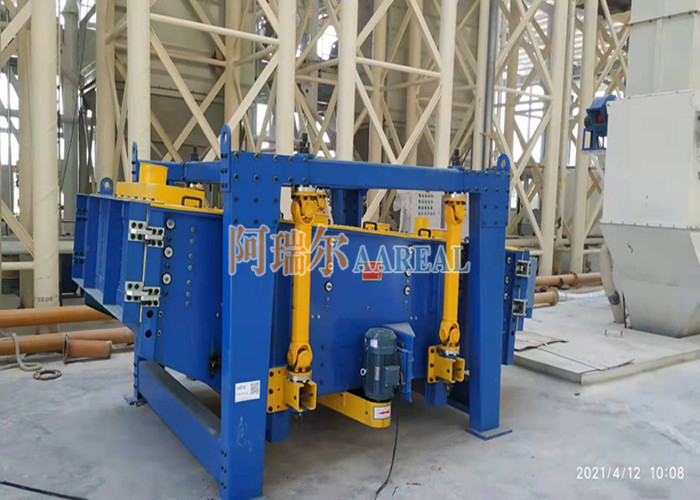

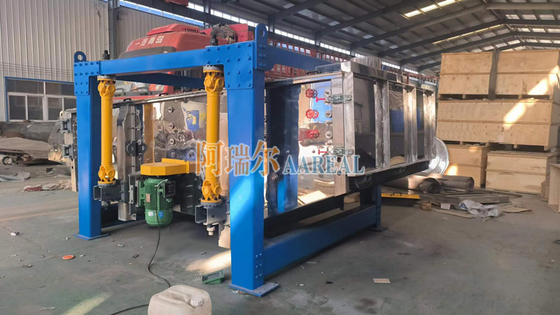

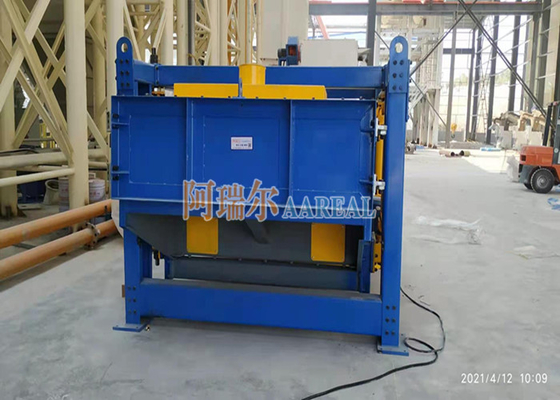

1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen
Overview of 1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen:
1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen is an excellent separation solution to further optimize your facilities' production. The AF model rectangular gyratory sifter machines maximize productivity, provides maximum vibration control and enables maximum recovery of clean, acceptable product.
The gyratory screener is an advanced industrial screener separator and high-performance gyratory industrial screening machine generating a gyratory vibration motion close to level plane at low angles in a reciprocating side to side motion. This unique industrial gyratory sifter was designed to provide a cleaner cut of materials while still allowing higher sieving capacity.
Some Information About 1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen You May Care:
Motion | gyratory reciprocating motion: the material is completely covered with the screen, making full use of the screen |
Layers of Screen | 1~6 layers, even 10 layers under special circumstances |
Duplex Screening | can realize multi-layer double screening with the same mesh |
Screen Type | hook screen |
Drive Device | exciter + motor + belt |
Motor Brand | Siemens, ABB etc. |
Amplitude | large horizontal amplitude can effectively improve the screening effect of near-size particles |
Mesh Cleaning Method | rubber balls |
Application | quartz sand, fertilizer, activated carbon, fracturing sand, petroleum proppant, petroleum coke, plastic particles, sugar, salt etc. |
About the Ball-decks:
All screens are equipped with welded metal “ball-decks”. Since no screen attachment clips are used, the ball decks can be fabricated from heavy duty rectangular steel tubing and heavy gauge perf plate resulting in much greater durability than offered by the light gauge sheet metal ball decks used in other equipment. The ball-decks are modular so they can be handled in sections. Once a screen is removed, the ball deck below that screen can also be removed without disturbing any other screen or ball tray.
Working Principle of 1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen:
How does our AF model industrial gyratory sifter work?
The total gyratory movement of the rectangular gyratory sifter can rapidly spread, stratify and separate the material. The unique gyratory motion can quickly spread the materials across the full width of screen at the feeding end, driving the particles move forward contact with the screen surface. The large horizontal amplitude can improve the sieving effect of the near-size particles, and can improve the material handling capacity of the machine.
The gyratory screener machine is also called reciprocating screener from the motion of screen box. The vibrating force produced by the driving device is the inertial force twining along the dead axle, the direction of which is changed according to a certain regular. The essence of gyratory sifter is the reciprocating intertia force formed by the rotation of eccentric wheel winding the dead axle. According to the structure characteristics and working principle of gyratory screen, its screen surface is arranged with level or incline (the angle of inclination is 0~5 degree). Working principle of gyratory screen is that after starting the screen machine, the shaking body of gyratory sieve machine namely screen box make ront-rear reciprocating motion under the action of the inertial force, screen box drives screen surface to make periodic shaking, which makes the materials on the screen surface to make directional jumping movement with the screen box. During the period, the material less than the aperture of the screen surface fall to under layer through the sieve mesh to became the screen underflow. The material greater than the aperture of the screen surface is discharged from the discharge gate after the continuous roll jumping movement and finally complete screening work.
From the structure and working principle of gyratory sifter machine we could see that the residence time of material staying on the screen surface namely the distance of its drive machanism eccentric wheel apart from the motion trial of material has a very important influence, that is to say, having the opposite effect to processing capacity and screening efficiency of screening machine. On the account, in the actual sieve assignments we can make our choice in the two aspects of production capacity and screening efficiency.
Application of 1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen:
Our AF model gyratory industrial screening machine have been widely used in the high-demand screening processes, for example, lime, petroleum coke, bentonite, fertilizer, fracturing sand, activated carbon, plastics, PVC powder, salt, sugar, etc.
Characteristics of 1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen:
1. Higher sieving capacity
Implementing higher frequency and adding more revolutions per minutes, this modern screening machine provides greater throughput compared to competing industrial vibrating sifters.
2. Even product distribution – much cleaner separation
With a side by side gyratory motion and a feed distributor the AF model gyratory industrial sifter is capable of providing a much better separation, which improves your product quality and build customer trusts. This technology also helps this gyratory screening equipment separate material with different shapes in different angles, that otherwise will pass the screen with a vibratory action, making the AF model gyratory sieve machine a one of its kind gyratory screener.
3. Easy-to-tension screening media
With its tension in place technology the AF model gyratory screener makes it easier for operators to tension the screens in every deck without having to dismantle the screener decks. With hook style screens, operators can easily adjust and tension screens from outside this screening equipment – this also eliminates the need for multiple screens panels, reducing downtime.
4. Improved productivity
The AF model rectangular gyratory sifter equipment increases productivity in your plant by reducing downtime and increasing capacity. Featuring advanced designs and technologies this industrial sifter eliminates the headaches experienced by operators in other traditional vibratory sifters.
5. Reduced costs
This industrial screening machine is engineered to reduce operating costs and lower downtime in processing plants – featuring easy to maintain technologies, this industrial screener is aimed to reduce costs in your plant and boost profitability.
6. Easy access to the screens – operator friendly
Featuring easy to open hinged doors from both ends, the AF model gyratory screening machine makes the operators’ job easier and faster, improving your plant productivity and reducing downtime.
7. The easy to open doors to clean, replace and inspect the mesh screen, along with a low maintenance drive and screen assembly, the AF model gyratory vibrating sifter machine is a cost-effective gyratory screening machine to own.
Hook Screens Ball Decks
Benefits of 1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen:
1. Side-to-Side Motion: With its gyratory sifter motion, the AF model gyratory vibration sifter provides exceptional screening quality. By separating materials of varying shapes, which is typical of raw dry goods, your company can maximize its production and product quality. This could lead to gains in revenue by building your consumer base and their confidence in your items.
2. Hook-Style Screens: Thanks to its convenient hook style screens, our AF model industrial gyratory screening equipment provides operators with a hassle-free method for modifying screens without imposing unnecessary downtime on your facility. This engineering feat also saves your company the cost and maintenance of maintaining multiple screen panels, which lets you maximize your uptime.
2. Easy-Tension Size Support: With its innovative design, our gyratory sifter equipment offers compatibility with multiple sizes of easy-tension screening media. That feature lets the AF model support a range of dry application processes, which helps your company adapt to changes with ease and boost your overall production without sacrificing quality.
3. High-Throughput Screening: With its large number of revolutions per minutes, our gyratory sifter equipment delivers an unparalleled level of throughput screening for dry materials, such as pharmaceutical products. This feature provides your operators and facility with the ability to optimize the quality and distribution of your goods, which can help you expand your reach and revenue.
Technical Parameters of 1500*3600mm Multi-Layer 4~6 TPH 90%~98% High Accuracy Gyratory Sifter Screener For Calcite Granules Powder Screening With Silicone Balls Mesh Cleaning Device Easy To Replace The Screen:
Model | Screen Surface Specifications |
Power (kw) |
Amplitude (mm) | Operating Frequency (r/min) | Leaning Angle of Screen (°) |
L*W*H (mm) (Reference) |
AF-515 | 500*1500 | 2.2 | 20~60 | 180~300 | 4~8 | 2900*1150*1500 |
AF-520 | 500*2000 | 2900*1150*1900 | ||||
AF-525 | 500*2500 | 3400*1150*1900 | ||||
AF-1025 | 1000*2500 | 3 | 3400*1700*1950 | |||
AF-1030 | 1000*3000 | 3900*1700*1950 | ||||
AF-1036 | 1000*3600 | 4500*1700*1950 | ||||
AF-1530 | 1500*3000 | 5.5 | 3900*2200*1950 | |||
AF-1536 | 1500*3600 | 4500*2200*1950 | ||||
AF-1830 | 1800*3000 | 7.5 | 3900*2500*1950 | |||
AF-1836 | 1800*3600 | 4500*2500*1950 | ||||
AF-2030 | 2000*3000 | 7.5 | 3900*2700*1950 | |||
AF-2036 | 2000*3600 | 4500*2700*1950 |
Note: our company reserve the right to modify the above data.
