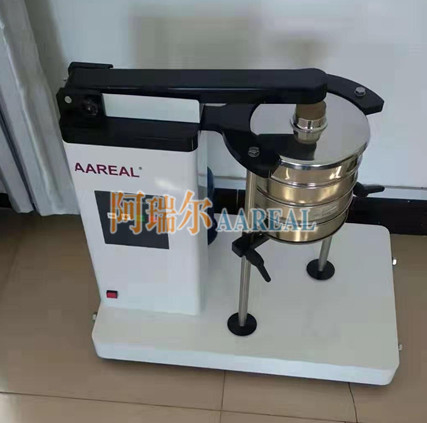

AT200tap Pulley Driven Test Sieve Shaker for Laboratory Particle Size Analysis with Sound-proof Device
Overview of AT200tap Pulley Driven Test Sieve Shaker for Laboratory Particle Size Analysis:
AT200tap tap test sieve shaker is also known as the rotap sieve, rotap test sieve shaker etc.
Comparable to similar international products, the working parameters meet the national standards. With the use of test sieves and sample screens, it can be used for screening production and inspection of powder materials in metallurgy, chemical industry, abrasive, superhard material, feed, food, medicine and other industries.
our AT200tap tap test sieve shaker can be equipped with sound-proof device according to the requirement.
The AT200tap tap test sieve shaker (synchronous belt type) made by our company is in accordance with international products. The working parameters meet the national standards. With test sieve and sample sieve, it can be used for metallurgy, chemical industry, abrasive, super hard materials, feed, food, medicine and other industries screening production and inspection of the powder materials.
Some Important Things You May Care About AT200tap Pulley Driven Test Sieve Shaker for Laboratory Particle Size Analysis:
Key Product
yes, it is designed and made by ourselves only in China for the moment
Other Name
rotap sieve, tap test sieve shaker, rotap sieve shaker etc.
Sieve Number
1~8 sieves

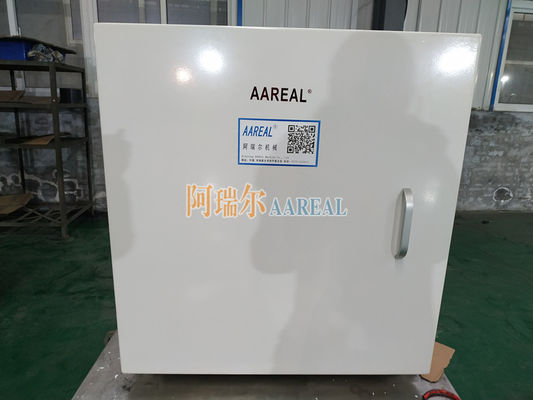

Sound-proof Device
optional, made by ourselves, L*W*H 850mm*670mm*900mm
Digital Display
yes
Time Adjustment
0~99 minutes
Material
carbon steel
Sieve Cover
included
Bottom Tray
included
L*W*H
700mm*445mm*650mm
Weight
80KG
Technical Parameters of AT200tap Pulley Driven Test Sieve Shaker for Laboratory Particle Size Analysis:
NO.
Name
Value
Unit
1
Diameter
200
mm
2
Layer
1~8
Layer
3
Shaking Times
290±10
times/min
4
Tapping Times
156±10
times/min
5
Reciprocating Trip
25
mm
6
Tapping Height
38±6
mm
7
Power
370
W
8
Voltage
380, 220
V
9
Dimensions
H700*L460*W420
mm
10
Weight
100
KG
Note: All technical data and dimensions of our products shall be subject to physical objects.
Features of AT200tap Pulley Driven Test Sieve Shaker for Laboratory Particle Size Analysis:
1. Good reproducibility of test results.
2. Can be equipped with Ø200 or Ø205 sieves from 1 to 8 layers.
3. Complete synchronous transmission power, quick and simple maintenance.
4. Sound-proof device can be added to avoid noise.
Working Principle of AT200tap Pulley Driven Test Sieve Shaker for Laboratory Particle Size Analysis:
The motor drives the gear speed change through the synchronous belt, making the main shaft rotate. And then the main shaft drives the eccentric wheel to make the slide plate drive the test sieve shake left and right. At the same time, it drives the top gear rotate, strike the hammer and slap the test sieve, making materials in the test sieve and sample sieve screen layer by layer. So people can accurately obtain the materials of multiple particle size ranges at the same time, achieving accurate and rapid screening purposes.
Application of AT200tap Pulley Driven Test Sieve Shaker for Laboratory Particle Size Analysis:
Our AT200tap tap type test sieve shaker is mainly used in diamond and other materials of high value, requiring accurate screening of the abrasive industry. It is widely used in metallurgy, powder, chemical, pharmaceutical, building materials, geology, feed, defense and other departments of scientific research and production, laboratory, and quality inspection room, for particle and powdery materials granular structure and sundries amount of standard screening, filtering and inspection sieve test. The device is equipped with timing device to ensure the accuracy and repeatability of the user test results.
