Iron Mineral Rectangular Vibrating Screen Multi Layer

Iron Mineral Rectangular Vibrating Screen Multi Layer

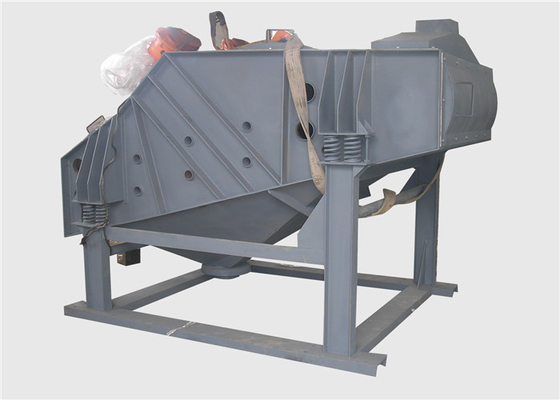

Introduction of Big Output Multi-layer Mogensen Probability Vibrating Screen for Iron Mineral:

Big Output Multi-layer Mogensen Probability Vibrating Screen for Iron Mineral is a kind of screening machine which can use probability screening principle actively.The probability screen is usually called the vibration probability screen, and its screen surface is directly vibrated by the exciting device.This probability screen has been widely used in metallurgy, building materials and coal and other industrial sectors, for medium and fine particle size classification.Probability of vibration screen with flexible vibrating screen is the main difference in the structure, probability of vibrating screen using multi-layer (usually for 3 ~ 6 layer), large dip Angle (30 ° ~ 60 °), large mesh (screen mesh size is 2 ~ 10 times the separation size of screen surface.

Characteristics​ of Big Output Multi-layer Mogensen Probability Vibrating Screen for Iron Mineral:

1. Multi-level Classification
Multi-level classification for mechanism sand or natural sand, screening mesh: 5mm ~ 2.36mm ~ 1.2mm ~ 0.6mm, some of the special mortar has been screened to 0.3mm ~ 0.15mm ~ 0.075mm.

2. Cost-effective
Introduced advanced technology from Germany and Spain, etc, continuous R & D and site validation, the probability screen successfully replace the expensive imported equipment in the dry mortar production line.

3. High Output
Probability screen capacity can reach more than 80 tons per hour, one set probability screen capacity equal multiple sets ordinary vibrating sieve, layout is easier in site .

4. Longer Life Expectancy
Screen surface design is curved state, the external ratchet tension can easily control the screen surface tension without loose, to make the screen mesh with longer life.

5. Unique Structure
Closed multi-layer design, up to five layers can be designed, and change the mesh faster, the back of the machine and the front of the discharge port are all detachable design, you can quickly replace each layer of mesh.

6. Green Environmental Protection
Probability Screen Equipment Cover designed with dust removal device, it can be easily connected to the site dust removal equipment to achieve dust-free screening requirements.

Main Dimensions of Big Output Multi-layer Mogensen Probability Vibrating Screen for Iron Mineral:
