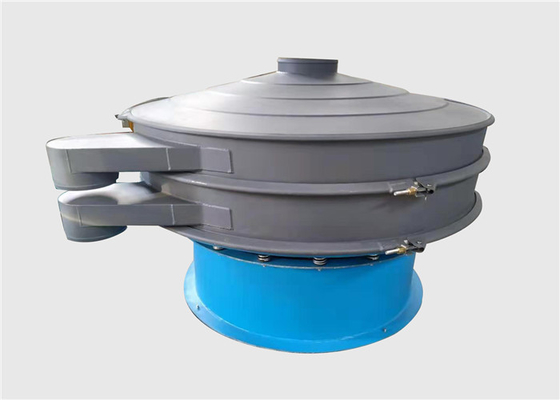

Amorphous Graphite Grains Vibro Screen Machine Industrial Rotary Vibrating Sieve

Amorphous Graphite Grains Vibro Screen Machine Industrial Rotary Vibrating Sieve

Introduction of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains is engineered to handle all screening problems such as sieving, grading, separating, screening or scalping bulk materials. It can easily be installed into production lines, providing the best screening capacity without demanding excessive floor area. It has been designed to adjust easily allowing complete material control to optimize separation quality. Discharge outlets can also be moved around the machine giving greater flexibility in the positioning of collection bins or containers. Its modular nature segregates it from other models in terms of flexibility and optimum use of space.

Purpose of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

                 Grading                         Solid-liquid Separation                Impurity Removal

Some Information About Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

Features​ of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

1. No dead corner of parts, easy rinse thoroughly and disinfection.

2. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.

3. It can be used with single or multilayer screen cloth.

4. Automatic discharge of materials, continuous operation.

5. Small volume, less space occupation, easy to move, 360 degree adjustment of discharge opening.

6. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5μm.

7. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.

Structure of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

  The rotary vibro screening machine is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.

Technical Parameters of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

Working Principle of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

  The rotary vibrating screener is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle of the upper and lower ends can change the trajectory of the material on the screen surface.

Overall Dimensions of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

Application of Industrial High Capacity Rotary Vibrating Sieve for Amorphous Graphite Grains:

1. Food Industry:  Alkali, sodium glutamate (MSG) Glutamate, Ground powders, spice powders, Sugar, Salt,Starch,Powdered Milk, Yeast and Fruit Juice.

2. Chemical Industry: Resin, Pigment, Medicine, grease, extinction agent, Rubber and plastic.

3. Abrasive, Glass and ceramic Industry: Silicone Sand, aluminum oxide, grinding abrasive, glass dust and fire-proof material.

4. Paper making Industry: black and white liquor, padding fluid, coated slurry, waste liquid and waste water recycling.

5. Mechanical Industry: powder metallurgy, casing and, electromagnetism material, Aluminum Powder, Metal Powder and Alloy.

6. Others: Carbon Black, Activated Carbon and pearl.
