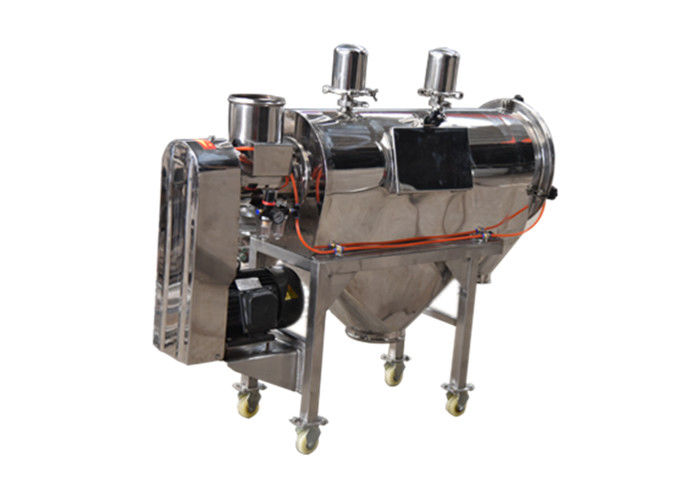

Introduction of Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder:
The Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder can be also called rotary screen, rotary sifter, centrifugal sifter, turbo sieve, rotary screen, airflow screen, airflow centrifugal sifter, centrifugal screener, centrifugal powder sifter, centrifugal sieve, airflow sieve, horizontal airflow screen, cyclone sieve, air classifier etc.
It is available in the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.
Working Principle of Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder:
The centrifugal sifter is a cylindrical screen, placing in the body, material through the screw conveyor system, then mixing and atomization with the air going into the mesh tube; material was forced to spray over the screen mesh due to centrifugal force and cyclone propulsion coming out from the blade of wind turbine in the screen mesh tube synchronous, and discharge by fine material outlet; the material that can’t be over the screen mesh is discharged by coarse material outlet along the wall of the tube.
Important Information You May Care About Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder:
| Name |
centrifugal sifter, rotary sifter, airflow screen, turbo sieve etc. |
| Motion |
rotary motion |
| Model |
AL-18-65, AL-30-100, AL-50-130 (special model can be customized) |
| Screen Size |
screen diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm |
| Machine Material |
stainless steel 304, Q235A etc. |
| Mesh Material |
stainless steel woven wire mesh, nylon mesh, wedge screen etc. |
| Mesh Deblinding System |
De-blinding with air, rubber, brush etc. |
| Mesh Size |
below 500 mesh |
| Layers of Screen |
single layer of screen |
| Purpose |
for sieving materials of sticky, static and multi-fiber etc. |
| Application |
calcium carbonate, diatomite, silica sand, quartz powder, diatomite, white cement, battery material, starch, chili powder, glucose powder, herbal powder etc. |

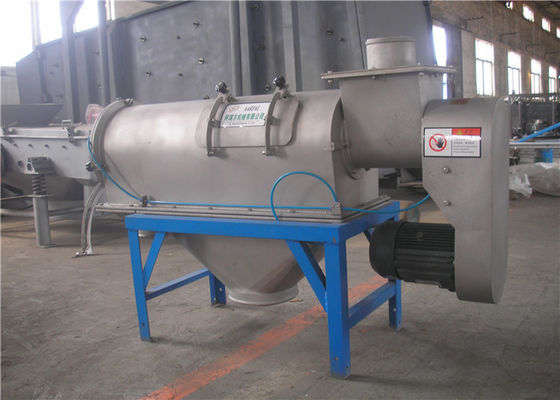

General Type Cantilever Type
Stainless Steel Woven Wire Mesh Nylon Mesh
Features of Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder:
1. The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.
2. The new type roller bearing can prolong the service life.
3. The machine can operate either in a single unit or multiple units, and it is safe and reliable for a long time operation.
4. The whole machine is in a small size and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.
5. It will form the air-isolated layer to avoid the powder entering the bearing so as to prolong the service life of the bearing effectively, reduce the maintenance frequency, and increase work efficiency.
6. The machine can be specially designed to meet special requirements.
7. The machine has the function of re-crashing the agglomeration materials.
8. The shell of machine is in a new design which makes it easy to install and convenient to control.
9. New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.
10. The screen-mesh can be cleaned automatically by cyclone.
Overall Dimensions of Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder:
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
| AL-18-65 |
1430 |
460 |
420 |
1005 |
135 |
230 |
250 |
330 |
340 |
210 |
| AL-30-100 |
1845 |
655 |
766 |
1240 |
320 |
285 |
300 |
350 |
380 |
290 |
| AL-50-130 |
2230 |
870 |
790 |
1775 |
280 |
515 |
150 |
660 |
400 |
485 |
Note: we can design and manufacture special type of sieving machine according to user's requirement.
Application of Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder:
The horizontal airflow screen can be widely used in various starch, glucose powder, xylitol, soybean protein, peanutprotein, vitamin c, sorbitol, ganoderma powder, malt powder, coffee powder, bread flour, flour, seasoningproducts, food additives, traditional chinese medicine powder, raw materials medicine, pharmaceutical intermediates, glass beads, perlite, carbonationsilicon, silicon powder, activated carbon, epoxy resin, polyethylene powder, fire extinguishing agent, zircon powder, pigment (phthalocyanineblue, phthalocyanine red, phthalocyanine yellow, yellow, high sand ceramic pigments, etc.), magnetic materials, drilling powder, pyrophyllite micro powder, barium sulfate, lithium manganate, zinc borate, fly ash, silica powder, glaze, powder coating, pollen, offwater and vegetable leaching, egg powder, milk powder, soda powder, flavor, magnesium oxide, magnesium hydroxide, calcium oxide, silicon nitride,alumina, molybdenum disulfide, cellulose, nanoscale titanium dioxide, pvc resin powder, barium sulfate, silica gelpowder, melon beans, calcium fluoride and other powder materials.
Technical Parameters of Horizontal Airflow Screen Centrifugal Sifter Rotary Screen for Herbal Powder:
| Model |
Material |
Apply to |
| AL-18-65 |
Q235A, SUS304 |
< 500 mesh |
| AL-30-100 |
Q235A, SUS304 |
< 500 mesh |
| AL-50-130 |
Q235A, SUS304 |
< 500 mesh |
