The low profile inline vibrating sifter is a kind of new type high efficient screening machine. It offers high capacity wet or dry scalping in a compact. Low head room design. Double create the 3-D motion that allows maximum flow- thru of ,material.This machine is ideally suited for prepackaging screening in many food and pharmaceutical applications,as well as for bulk bag unloading and screening of raw ingredients.
The motion trace of the material can be ganied by adjusting the phase angle of the hammer to satisfy different need. And different exciting force can be gained with different balance weight of the hammer.
Working Principle of Flow-thru Direct Discharge Vibrating Circular Separator Screens:
The low profile flow-thru separator uses vertical vibration motor as excitation source. This motor is equipped on both sides with an eccentric hammer. The rotation of vibrating motor will produce a 3-D Motion consisting of horizontal,vertical and incline motion. This power can accelerate the flow of the undersize which can be discharged vertically to the next process.
Some Important Information About Flow-thru Direct Discharge Vibrating Circular Separator Screens You May Care:
| Item |
Description |
| Alternative Name |
flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve, flo-thru sifter etc. |
| Motor |
single vibrating motor, dual vibrating motors |
| Height |
can be made as low as 300mm |
| Mesh Debling System |
ultrasonic deblinding system, bouncing balls, rotary brush system etc. |
| Screen Decks |
1~2 screen decks (multiple layers can be customized according to the specific situation) |
| Machine Diameter |
400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc. |
| Discharge Port |
the discharge port for fine particles are at the bottom of the machine |
| Purpose |
suitable for materials safety screening with less oversize particles |
| Machine Shape |
round, rectangular |
| Damping Spring |
steel spring, rubber spring |
| Application |
flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc. |
| Voltage |
three-phase/380V, 415V, 440V etc. |
Characteristics of Flow-thru Direct Discharge Vibrating Circular Separator Screens:
1. Compact structure, low occupancy height (can be as low as 300mm)
2. Material flow adopts direct-current design.The product is discharged directly from the bottom of the sieve machine, easy to connect with the production line.
3. It is used for the high production capacity of coarse screening, very suitable for the dry materials security screening with less large particles.
4. Small and light.
Technical Parameters of Flow-thru Direct Discharge Vibrating Circular Separator Screens:
Standard Type: AX-400, 600, 800, 1000, 1300, 1500
Portable Type: AXS-400, 600, 800, 1000, 1300, 1500
Easy Unpick and Wash Type: AXSS-400, 600, 800, 1000, 1300, 1500
Straight Jump Type: AXT-400, 600, 800, 1000, 1300, 1500
| Model |
Power |
Screen Diameter |
| 400 |
0.1KW |
350mm |
| 600 |
0.1KW |
550mm |
| 800 |
0.1KW |
750mm |
| 1000 |
0.2KW |
920mm |
| 1200 |
0.2KW |
1005mm |
| 1300 |
0.2KW |
1120mm |
| 1500 |
0.4KW |
1420mm |
Note: the data above are for reference only, and our company reserves the right to modify the data.
Application of Flow-thru Direct Discharge Vibrating Circular Separator Screens:
It is widely used in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries for particle and powder’s coarse screening and fine screening.
This compact sieve can be used in the feed system of instant noodles, dried noodles, small food, solid drink and so on, to separate the foreign objects in the raw materials (flour, starch, milk powder, additives etc.).
1. Chemical industry: resin, coating, drug industry, cosmetic, oil, herbal powder ect.
2. Food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice etc.
3. Metals, metallurgical mining: aluminite powder, lead powder, copper powder, ore, alloy powder, electrode powder, abrasive powder, refraclory materials, kaolin, lime, aluminium oxide, quartz sand ect.

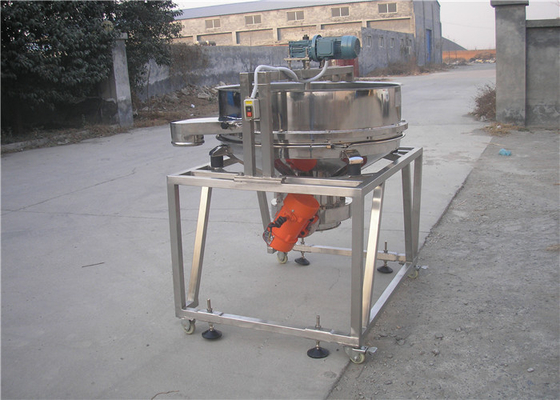

Some Photos for Flow-thru Direct Discharge Vibrating Circular Separator Screens:

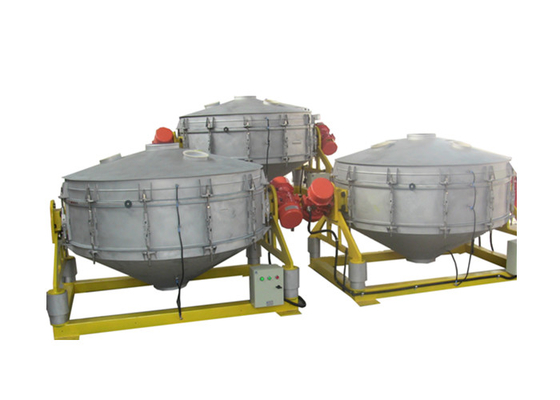

Double Motors Single Motor
