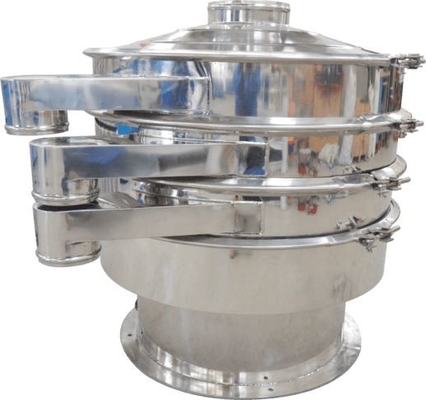

Multi Deck Rotary Vibrating Screen Three Dimensional Rotary Tumbler Sifter

Multi Deck Rotary Vibrating Screen Three Dimensional Rotary Tumbler Sifter

Overview of Multi-deck Rotary Vibating Screen Separator:

The multi-deck rotary vibating screen separator is also called round separator, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro screen, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  This kind of screening machine does three-dimensional motion. It can be used in food, medicine, chemical industry, metals, mining, abrasive, ceramics, pigments, coatings, electronic materials, pollution treatment and other industries for wet and dry screening, sieving, grading, classification, filtering, cleaning, de-dusting, impurity removal, lump breaking, quality control and so on.

Working Principle of Multi-deck Rotary Vibating Screen Separator:

  Multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface.

  Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

  The general characteristics of the vibrator adjustment are described below:

Structure Diagram of Multi-deck Rotary Vibating Screen Separator:

Features of Multi-deck Rotary Vibating Screen Separator:

1. High efficiency, refined design and durability. Any powder and mucus can be sieved.

2. Easy to replace the screen, simple operation and convenience cleaning or washing.
3. The mesh is not blocked. No powder flying. And it can be sieved to 500 mesh or 0.028mm.

4. Impurities and coarse materials are automatically discharged and can be continuously operated.

5. Unique screen flame design. The service life of screen is long. Only 3~5 minutes to replace the screen.

6. Small size, not occupying space, and easy to move.

7. The screen of the machine can reach up to 5 layers, but 3 layers are recommended.

Basic Function of Multi-deck Rotary Vibating Screen Separator:

         Grading & Sieving                     Impurity Removal                  Solid-liquid Separation

1. fine grading, control particle size range

Separating and screening of different particle sizes solid particle group with narrow particle size range

2. multi-group classification, control particle size range

Separating and screening of solid particle groups with different particle sizes, can be divided into five groups at the same time

3. coarse screening

Separating and screening large particles or ultra fine particles, and achieving high productivity

4. fluffy powder

According to the process requirement, the powder can be fluffy, so that the powder can be mixed into the air, easy to mix other materials

5. filtration and product recycling

It can be used to filter out the large particles in various slurry, or to dehydrate the solid-liquid mixture, or to recycle useful solid particles

6. wastewater purification and water pollution control

It can efficiently recycle useful solid particles and purify water for reuse

Technical Parameters of Multi-deck Rotary Vibating Screen Separator:

Overall Dimensions of Multi-deck Rotary Vibating Screen Separator:

Application of Multi-deck Rotary Vibating Screen Separator:

Chemical Industry: PVC, citric acid, electrode materials, resin fertilizer, urea-formaldehyde molding powder, cosmetics, oil paint etc.

Pharmaceutical Industry: lactose, glucose, vitamins, traditional chinese medicine powder, preparations etc.

Metal and Mining Industry: alloy powder, molybdenum powder, stainless steel powder, tungsten powder, aluminum powder, nickel powder, cobalt powder, alumina, glass beads, graphite, kaolin, mineral salts etc.

Abrasive and Coating: aluminum silver paste, powder coating, iron oxide red, laser powder, pearlescent pigment, paper making coating, organic pigment carbon powder etc.

Electronic Materials: fluorescent powder, artificial black lead etc.

Food Industry: wheat bread, bread flour, sugar powder, milk powder, starch, juice, vegetable juice, monosodium glutamate, spices, yeast, seasoning, tofu, ice cream, chocolate powder, potato powder etc.

Pollution Treatment: waste oil and papermaking effluent, effluent from brewery waste water, dyeing and finishing wastewater, activated carbon etc.

Various Forms of Multi-deck Rotary Vibating Screen Separator:

                       Standard Type                                               With Discharge Gate

      Increase of 67% of the Screen Area                                         Movable Type

                    Edge Added Type                                          Quick Release Clamp Type

                 Water Spraying Type                                           Explosion-proof Type

                       Ultrasonic Type                                                         Clean Type

           Feeding & Screening All-in-One                             With Rotary Brush System

                   Big Capacity Type                                      PP/PE Material Anti-corrosion Type

     With Screening, Dedusting, Deironing                  Big Type with 2000mm Diameter
